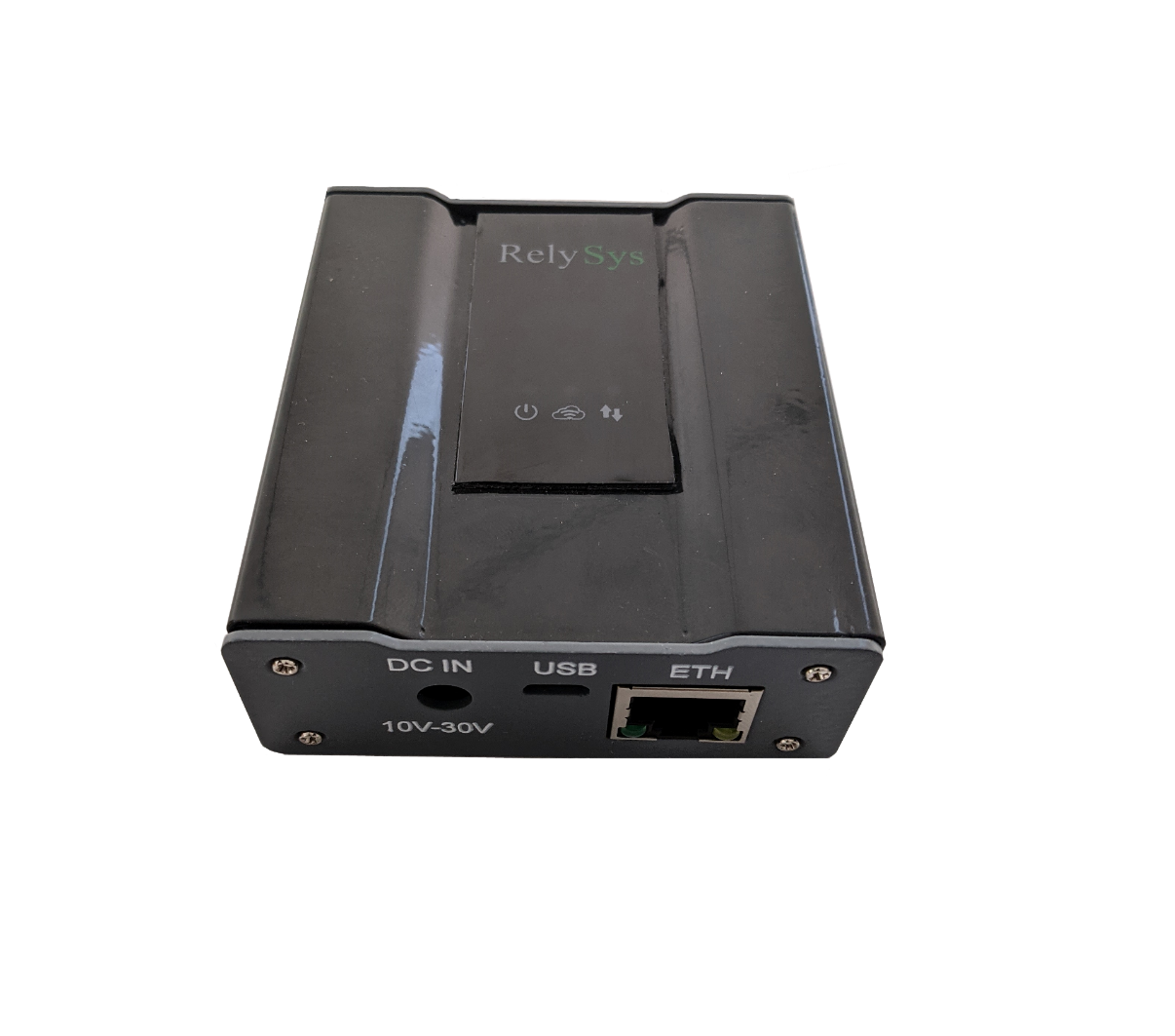

The P330 Gateway is designed to achieve cellular internet connectivity over Ethernet & USB


P330 is based on ARM® Cortex™-A7 CPU at 1.3GHz processor and supports one 10/100 Ethernet Interface by means of standard RJ-45 connector along with LTE CAT4 cellular connectivity with UMTS/GPRS fallback. The device has a Micro USB interface for connecting Host. The device has SMA connectors for connecting cellular Antenna as well as GPS Antenna. The device supports RF bands of GPS, GLONASS, Galileo & BeiDou. The gateway has inbuilt reverse protection, over voltage protection, over current protection and has an operating temperature range of -20 Deg C to 70 Deg C. The device runs on Yocto Linux ( Long-term supported Linux Kernel (LTSI)), with Open VPN & modbus support and has an on board RTC.


DC Powered ( 9Volt to 30Volts)
2G/3G/4G Support
10/100 Mbps Ethernet
Micro USB Support
Linux Ported
ARM® Cortex™-A7 CPU at 1.3GHz
0 DegC to 60 Deg C
On Board RTC
Rugged Sheet Metal Enclosure


Product Specifications
