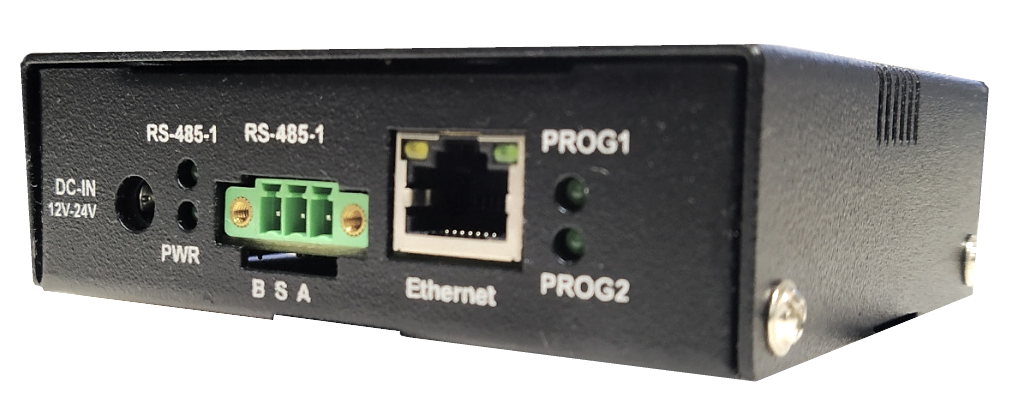

Serial Ethernet protocol Converter


PC-310 is based on MIPS CPU running at 580 Mhz and supports One RS-485 port, 1.5KV isolated Half duplex RS-485 channel & One 10/100 Mbps Ethernet interface. Device supports 4GB eMMC flash card for Internal Data storage & optional 150/300 Mbps Wi-Fi AP with Encryption. The device can be powered by a wide DC input of 10V to 30V @1Ampere current. The device has inbuilt reverse voltage, over voltage and over current protection. The device runs on Linux OS, has LED indications, on-board RTC and an operating temperature range of 0 deg C to 60 Deg C.


10-30V Wide DC input
One 10/100 Mbps Ethernet
One RS-485 port
IEEE 802.11 b/g/n support
4GB eMMC / 32MB Flash / 128MB DDR
MIPS CPU running at 580 Mhz
0 to 60 deg C
On board RTC
Rugged Sheet Metal Enclosure


Product Specifications
